Low fuel pressure doesn’t always announce itself with a dash light. It shows up as tiny stumbles, inconsistent torque, or higher-than-normal EGTs—and by the time a code appears, your high-pressure pump and injectors may have already been stressed. The fix is simple and affordable: monitor supply pressure (and optionally rail) so you can spot problems before they turn into four-figure repairs.
This guide explains why low pressure is dangerous, the symptoms to watch for, what to monitor, and the clean, weather-proof sensor/gauge setups we install every week for RAM Cummins and other diesel trucks.
Your high-pressure pump can only do its job if it’s fed a steady stream of clean, air-free fuel at the right inlet pressure. When supply pressure sags—because of a weak lift pump, clogged filters, aeration, hot fuel, or restrictions—the HP pump works harder, gets hotter, and can cavitate. That leads to:
Inconsistent rail pressure → stumble/surge, smoky tip-in, higher EGTs
Accelerated wear on pump plungers and injector tips
Hard starts and long cranking after heat soak
Costly contamination events if components begin to shed material
Monitoring lets you catch the pattern early: “Pressure drops under load, then recovers,” or “Pressure decays as the filter loads,” so you swap a $30 filter now instead of injectors later.
Mid-grade stumble or brief surge: Supply pressure is dipping when demand rises (long hill, hot day, towing).
Lazy tip-in or smoky launch: Air in fuel or marginal supply lets fueling overshoot airflow; tune/charts look fine, but supply can’t keep up.
Hard hot-soak start: Heat + aeration raise volatility; low inlet pressure exaggerates it.
Intermittent rail pressure codes: Often the last stage—don’t wait for this to appear.
Clue checklist: Did you just tow in heat? Is your fuel filter old? Are you running a tune or bigger injectors on a stock lift pump? Do you buy fuel at varied stations? Any “yes” belongs on the monitoring shortlist.
You can learn 90% of what you need from lift-pump (supply) pressure alone. Rail pressure is optional but helpful for correlation.
Lift/Supply pressure (pre-HP pump): Your early-warning signal. If it dips on hills or sags as filters age, you’ll see it first here.
Rail pressure (command vs. actual): Tells you how well the HP pump and injectors are meeting demand. Great for confirming that supply issues are propagating downstream.
Good

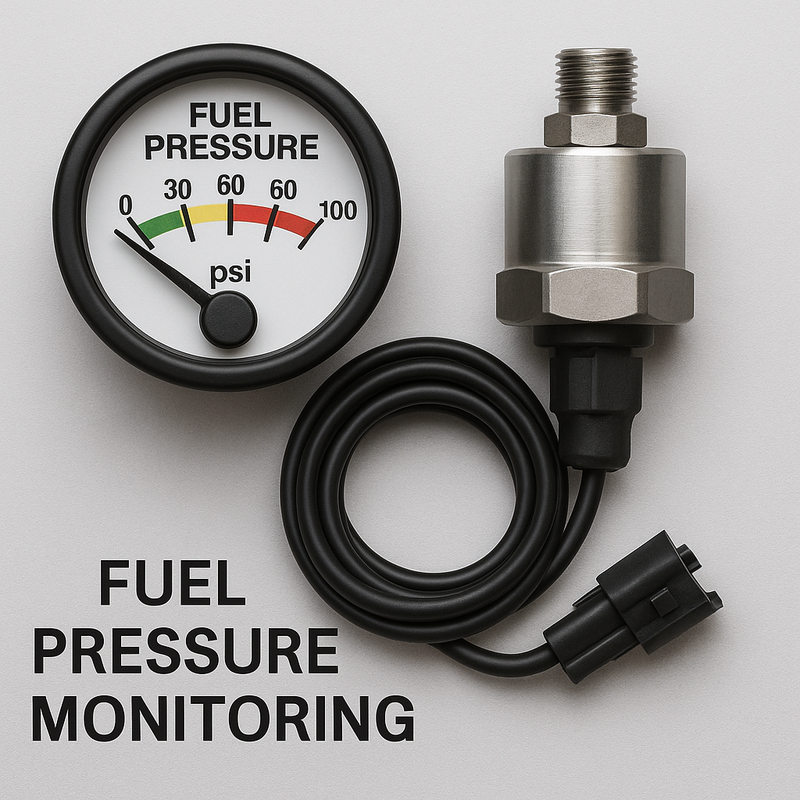

Electric lift-pressure sensor with an in-cab analog or digital gauge.
Simple low-pressure warning (light/buzzer) you can set at a conservative threshold.
Better
Dual-channel: lift pressure + EGT or lift + boost, to see the full picture on climbs.
Basic data capture (a short log from your tuner/display) for service visits.
Best
Lift + rail on a single digital display with configurable alerts (e.g., “if lift < X for > Y seconds, alert”).
Quick-connect service port for manual gauge verification and filter-change bleed.
We’ll match the hardware to your truck and use case (stock, tuned, tow rig, fleet).
Every platform and setup has its own “happy place.” Treat these as general patterns—we’ll establish your baseline during a quick road test.
Idle / light cruise: Supply pressure should be steady and quiet (no slow drift). Small seasonal changes are normal; big swings are not.
Hill pull / towing: Expect some drop as demand rises, but pressure should remain stable—not nose-dive.
Rule of thumb: If supply pressure falls sharply under load or drops progressively as the truck heats up, investigate. A quick filter swap that restores the old baseline is your cheapest fix.
Trend beats absolute: We set alerts off percentage change from your baseline and duration (e.g., “>20% drop for >3–5 seconds”). That avoids nuisance alarms yet flags real issues.
Tip for Cummins owners: Many healthy builds keep supply pressure comfortably above the low-teens under sustained load. If yours dives well below its normal under load, it’s time to test filters, wiring/voltage to the lift pump, and pickup restrictions. (We’ll confirm spec targets on your platform.)
A monitoring setup is only as trustworthy as the install.
Sensor location: We place the sender upstream of the HP pump in a protected, serviceable spot. On trucks with aftermarket lift pumps, we use manufacturer-approved ports or add a test T with proper sealing.
Wiring & power: Fused, clean power and protected routing (loom + abrasion sleeves). No vampire taps.
Weather-proofing: Deutsch connectors or sealed equivalents; drip loops; dielectric grease on terminations.
Calibration & noise control: We verify readings with a mechanical reference gauge and add damping where needed so the needle doesn’t dance over road chop.
Cab integration: OE-style mounts and tidy cable management so the gauge looks like it belongs there.
What’s included
Lift-pressure sensor + gauge/display (platform-appropriate)
Optional rail pressure channel (when supported)
Clean harness and plumbing, sealed connectors, service port
Alert thresholds set to your baseline + use case
Verification drive with a short log (idle, cruise, grade simulation)
Typical time
Install & verification: ~2–3 hours (lift only), ~3–4 hours (lift + rail), depending on routing and cab integration
Aftercare
Free pressure re-check within 30–45 days or after your first big tow
Filter-change guidance and a sticker/record with your baseline values
If your truck later gets a FASS/filtration upgrade, we’ll re-baseline and adjust alerts
Not sure if you need it? Start with a Fuel Health Check:
Supply pressure snapshot at idle and during a short pull
Quick filter and line inspection; check for water/debris
Optional rail correlation if your display supports it
We’ll show you the numbers and recommend monitoring only, service now, or upgrade (e.g., filtration/lift pump) based on evidence.
Get a Same-Week Pressure Monitor Install
Catch issues early, protect injectors and pumps, and drive with confidence. Financing available if you’re bundling filtration or a lift pump.
Lift pressure alone catches most real-world problems early. Adding rail helps diagnose whether supply issues are propagating downstream, and it’s useful for tuned or heavy-tow setups. We can start with lift only and add rail later.
Usually yes. Many displays/tuners can log an aux analog input and overlay it with EGT/boost/commanded rail. Bring your device—we’ll integrate the sensor so you can export simple CSV logs.
Not if it’s set right. We configure alerts based on your baseline and duration, so transient blips don’t ping you. Think of it like ABS: quiet until it matters.
Fuel-system repairs are expensive. A small, clean gauge install isn’t. Monitor lift pressure, optionally correlate rail, and use that info to change filters and fix restrictions before heat and cavitation take their toll. Contact us today!
